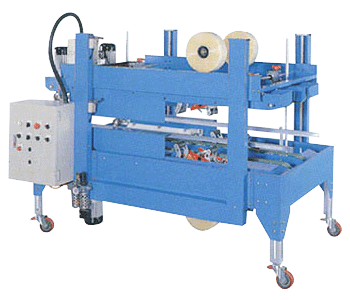

Auto Edge Carton Sealing Machine - SPI 566EG
Features :
The machine is durable and designed for safety and low break-down.
Auto sealing top bottom edges and it is fast, solid and work efficiency.
Manual adjusted width.
Auto adjusted height.
WORKSTATION INTRODUCTION :
Carton sealing machine seals carton in center on both top and bottom sides.
After passing through the Center Mechanism, the carton enters in the Auto Edge Carton Sealing Machine.
Auto sealing the top and bottom edges.
Manual adjusted carton sizes.
Specifications :
Power supply
1 Ø, 110V,220V, (50/60Hz),4L
3 Ø, 220V,380V, 440V, (50/60Hz),4L
Air
5kgf/cm2
Electric consumption
2KW
Capacity
4~6 cartons/ min
Case range
L300~600xW250~600xH250~500mm
Machine size
L1700xW1132xH1377mm
Machine Weight
450 kgs
OPP width
2" or 3"
OPP length
1000Y
OPP thickness
55~70 microns
