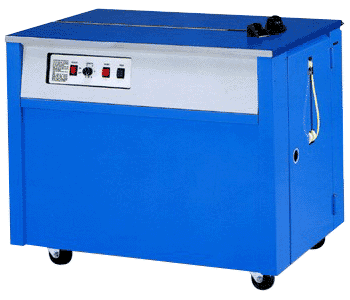

Semi-Auto Strapping Machines - PW 316-H


Features :

  • Standard accessory, its advantage is stable quality, durable material, and easy maintenance.
  • Special design-Control PP strap cooling time. It can make the PP strap to fasten well in any time.
  • "Electricity-saving" device, the motor automatically stops running after 60 seconds pause to reduce the regular mechanical wear and to prolong the machine's life.
  • The advanced P.C.B microchip circuit board control system, less malfunction and easy maintenance.
  • Durable electro-magnetic clutch transmission means lesser mechanical wear and noise pollution.
  • New heater plate design improves warm-up-time, weiding speed and increase work efficiency.
  • Installing an auxiliary feed switch and cut switch at the control panel makes you operate more conveniently.

Options:
If the machine is with outside tension, then the model number is
SPI 316HS, SPI 316LS, SPI 316SLS.

Specifications :

Power supply
1 Ø AC110,220V(50,60Hz), 1/4HP
Strap width
6,9,12,15 mm (adjustable)
Tension strength
15~50kgs
Strapping speed
2.0 sec./strap
Min. package size
60mm
Max. package size
Any size
Dimension (LxWxH) (mm)
910x580x750
N.W.
100kgs
G.W.
120kgs
Packing size (LxWxH) (mm)
956x626x842
