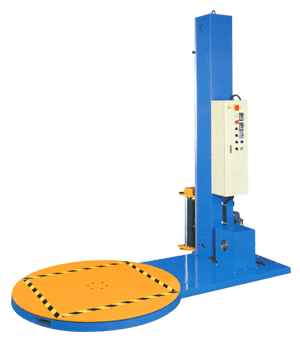

Stretch Wrapping Machine - PW 1521 |
|
| |
|
Features :
- Utilizes PLC control, equipped with standard organization of professional design.
- A frequency inverter controls the speed of the motor, so that the film wrapping and rotational speed can be perfectly matched.
- The film carriage is equipped with chain drive, for smooth vertical movement. Speed is adjustable.
- Turntable is is equipped with chain drive, for stable turning during pallet loading. Speed is adjustable.
- When moving, the pillar can be directly put down. Don't need to take apart the film carriage. This saves time and prevents negligence when reinstalling.
- Manual or auto mode of operation.
- Soft start / stop and wrap smoothly so the machine life is long.
|
  |
Options :
- Power pre-stretch system, PW-1521P
- (150%, 200%, 250%, 300%) (Fig-1)
- Top press platen, PW-1521 + P (Fig-2)
- Access ramp (see right Fig.)
- Middle Re-enforcing Wrapping
|
Specifications :
Turntable diameter |
1500mm |
Wrapping height
(including pallet) |
2100mm |
Pallet weight |
Max. 2000kgs(4400 lbs) |
Power supply |
3Ø , 220, 380, 415, 440V(50/60HZ)
1Ø , 110, 220V(50/60HZ) |
Power consumption |
Electrical magnetic brake 1.3KW
Turntable motor 1 HP
Film carriage motor 1/2HP
|
Power consumption |
Power Pre-stretch system 1.7KW
Turntable motor 1 HP
Film carriage motor 1/2 HP
Pre-stretch motor 1/2HP |
Film carriage system
|
Electrical magnetic brake (Adjustable)
Option: Power pre-stretch system |
Turntable speed |
0~15 RPM (Adjustable) |
Film carriage speed |
5M/per min. (Adjustable) |
Film spec. |
Film reel core dia.: 76mm
Film reel outside dia.: Max. 350 mm
Width: 500mm |
Film thickness |
17~35 microns |
Machine size
|
L2700xW1500xH2421 mm |
Packing size |
L2838 x W1636 x H803 (mm) |
|
|
|
|
