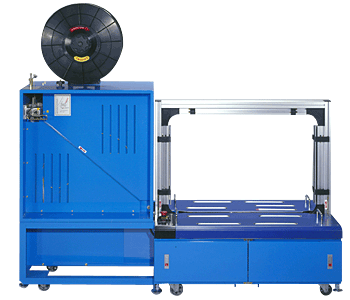

Fully-Auto Strapping Machine - PW 0860CL |
|
|
|
Features :
- Rapid speed: 2.4 sec/per cycle, 25 cycles/per min.
- Easy Maintenance:
No Greasing, Mechanism is stable and durable, Easy operation.
- Tension Adjustment:
Can be adjustable at will, Max. tension is over 90 kgs.
- Precision Structure:
Mani machine's component is made of aluminum alloy. Control System is compatible. Add on a safety device, built for 24 hrs continuous operation.
- Easy loading or unloading:
To load or unload the strapping roll is convenient due to the dispenser is placed outside.
- Extensive applications:
Can be independent operation or combine with other machines for unmanned production or auto packaging systems.
|
Specifications :
Power supply |
3phase, 220V, 380V, 440V, 50/60Hz |
Strap width |
9, 12, 15, 5, 19 mm
|
Tension adjustment
|
Ajustable
|
Strapping Speed
|
2.4sec./per cycle
|
Power consumption
|
850W
|
Max. package size
|
W850 x H600mm(W33.5 x H23.6 inch)
|
Min. package size
|
W100 x H30mm(W3.9 x H1.2 inch)
|
Dimension (LxWxH)
|
L1900 x W640 x H1764(mm)
L74.8 x W25.2 x H70.9(inch)
|
Net weight
|
300kgs/660(lbs)
|
Gross weight |
380kgs/836(lbs) |
Shipping size |
L2050 x W750 x H1373(mm)
L80.7 x W29.28 x H54.1(inch) |
|
|
|
|
