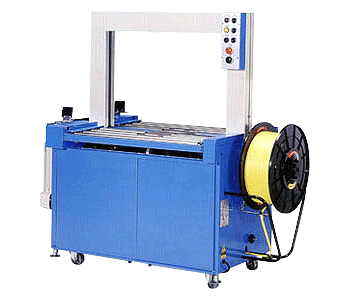

Fully-Auto Strapping Machine - PW 0860AS2R |
|
|
|
Features :
- With better design-The pack table is reopening for easy maintenance.
- The position of strapping can be adjusted by moving the location of sensors.
- Precision Structure:
Main machine's component is made of aluminum alloy. Control system is compatible.
Add on a safety device, built for 24 hrs continous operation.
- Strengthen the top roller driven for stable effect, the highest-quality and long-lasting durability.
- Can be independent operation or combine with the conveyors for auto packaging and unmanned strapping system
- Two sensor sets (can choose strap / non-strap or 1 strap / 2straps)
|
Specifications :
Power supply |
3phase, 220V, 380V, 440V, 50/60Hz
|
Strap width |
9~19mm
|
Tension adjustment |
Ajustable
|
Strapping Speed
|
2.4sec./per cycle
|
Power consumption
|
1250W
|
Max. package size
|
W850 x H600mm(W33.5 x H23.6inch)
|
Min. package size
|
L350 x W400 x H30(mm)
L13.7 x W15.7 x H1.2(inch)
|
Dimension (LxWxH)
|
L1645 x W760 x 1535(mm)
|
Net weight
|
330kgs/726(lbs)
|
Gross weight
|
390kgs/850(lbs)
|
Shipping size
|
L1660 x W850 x H1700(mm)
L65.3 x W33.4 x H66.9(inch)
|
|
|
|
|
