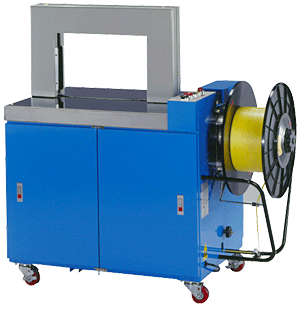

Fully-Auto Strapping Machine - PW 0430A |
|
|
|
Features :
- Rapid speed: 2.4 sec/per cycle, 25 cycles/per min.
- Easy Maintenance:
No Greasing, Mechanism is stable and durable, Easy operation.
- Tension Adjustment:
Can be adjustable at will, Max. tension is over 90 kgs.
- Precision Structure:
Mani machine's component is made of aluminum alloy. Control System is compatible. Add on a safety device, built for 24 hrs continuous operation.
- Easy loading or unloading:
To load or unload the strapping roll is convenient due to the dispenser is placed outside.
- Extensive applications:
Can be independent operation or combine with other machines for unmanned production or auto packaging systems.
- The machine is durable ingenions designed and less space.
- It is cost efficiency for using 6mm P.P. Strape.
- It is suitable for small cartons.
|
Specifications :
Power supply |
3phase, 220V, 380V, 440V, 50/60Hz |
Strap width |
6, 9, 12, 15.5, 19mm
|
Tension adjustment
|
Ajustable
|
Strapping Speed
|
2.4sec./per cycle
|
Power consumption
|
850W
|
Max. package size
|
W450 x H300mm(W17.7 x H11.8 inch)
|
Min. package size
|
W100 x H30mm(W3.9 x H1.2 inch)
|
Dimension (LxWxH)
|
L1260 x W630 x H1235(mm)
L49.6 x W24.8 x H48.6(inch)
|
Net weight
|
200kgs/440(lbs)
|
Gross weight
|
250kgs/550(lbs)
|
Shipping size
|
L1300 x W725 x H1445(mm)
L51.2 x W28.5 x H56.9(inch)
|
|
|
|
|
